Nuitrack integration guide for Unreal Engine 4.10

1.1 Setting up Unreal Engine for VicoVR

Change the template of Android app . Typically path to template folder is: c:\Program Files (x86)\Epic Games\4.10\Engine\Build\Android\Java\Actions needed:

1. Copy nuitrackhelper.jar file from SDK to \libs\
2. Add Nuitrack initialization into SplashActivity ({TemplateFolder}\src\com\epicgames\ue4\SplashActivity.java)
   1. Add import at the beginning of the file: import com.tdv.nuitrack.sdk.Nuitrack;
   2. Move onCreate content to the new method: private void StartGame();
   3. Create class field for logger: private static Logger Log = new Logger("UE4");
   4. Create Nuitrack loading method:

       private void LoadNuitrack()

      {

      Nuitrack.init(this, new Nuitrack.NuitrackCallback() {

      public void onInitSuccess(Context context) {

      Log.debug( "Nuitrack init SUCCESS in onCreate()");

      StartGame();

      }

      public void onInitFailure(int errorId) {

      Log.debug( "Nuitrack init FAILED in onCreate()");

      finish();

      }

      });

      }



   5. Call LoadNuitrack(); method in onCreate method.

Warning: You need to do UE4 setup for VicoVR only once until you have update for UE4 or VicoVR SDK - then you will need to repeat the adjustment procedure.

Optional: If you want to prevent automatic screen lock in your applications, add AndroidThunkJava_KeepScreenOn(true); line to the end of onCreate method in GameActivity ({TemplateFolder}\src\com\epicgames\ue4\GameActivity.java)

1.2 Setting up your project

1. Copy Nuitrack folder from SDK to project Source folder.

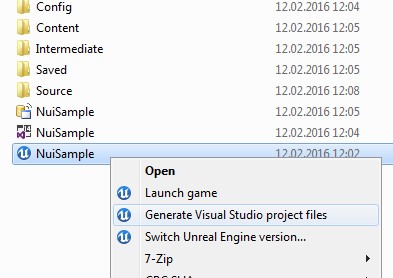

2. Generate Visual Studio project files (using Windows Explorer context menu option on .uproject-file)
3. Add Extra Permissions in Project Settings -> Platforms -> Android :
   android.permission.BLUETOOTH
   android.permission.BLUETOOTH_ADMIN
   android.permission.READ_EXTERNAL_STORAGE
   android.permission.WRITE_EXTERNAL_STORAGE
   android.permission.INTERNET


4. Add Nuitrack libraries and headers to project dependences file Build.cs (Games/{ProjectName}/Source/{ProjectName}/{ProjectName}.Build.cs):

    PrivateDependencyModuleNames.AddRange(new string[] { "Nuitrack" });

   PrivateIncludePaths.AddRange(new string[] {

   Path.GetDirectoryName(RulesCompiler.GetModuleFilename(

   this.GetType().Name)) + "Nuitrack/Nuitrack/include" });



   (Path class requires using System.IO;)

1.3 Nuitrack usage

1. For Nuitrack initialization, skeleton tracker creation and event subscription you need to use the following code (you can put it to BeginPlay() method of GameMode class):

    Nuitrack::init();

   SkeletonTracker::Ptr skeletonTracker = SkeletonTracker::create();

   skeletonTracker->connectOnUpdate(std::bind(&ANuiSampleGameMode::OnSkeletonUpdate, this, std::placeholders::_1));

   Nuitrack::run();



2. For Nuitrack terminating call release() method (you can put it to BeginDestroy() method of GameMode class):

    Nuitrack::release();



3. For raising events with new data from modules call update() method (you can put it to Tick(float dt) method of GameMode class):

    Nuitrack::update();



4. Skeleton tracking data will be available inside OnSkeletonUpdate method (was subscribed to OnUpdate event from SkeletonTracker):

    void ANuiSampleGameMode::OnSkeletonUpdate(SkeletonData::Ptr userSkeletons)

   {

   auto skeletons = userSkeletons->getSkeletons();

   ...

   }



2. Nuitrack sample project

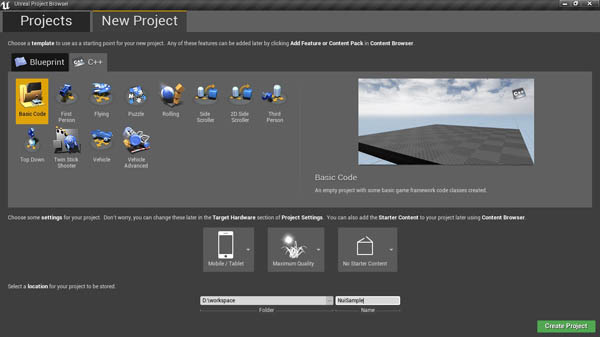

1. Create new project.
2. Delete everything except PlayerStart from the World.
3. Set player locations and rotation as on screenshot.

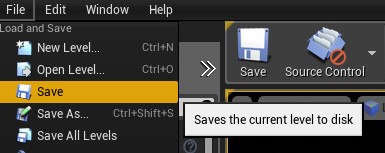

4. Save current World.

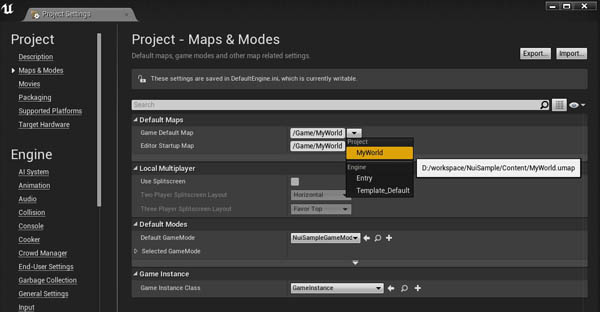

5. In Project Settings -> Maps & Modes:
   1. Set your World as Game Default Map and Editor Startup Map.

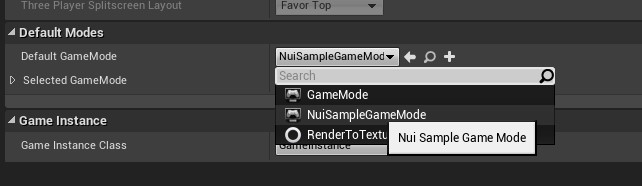

   2. Set Default GameMode.
6. In Project Settings -> Android press Configure Now and fill Android Package Name field.
7. Setup Android Unreal Engine for VicoVR (as it was described in point 1.1)
8. Set up your project (as it was described in point 1.2)
9. Open Visual Studio for writing C++ code:

NuiSample.Build.cs File:

using UnrealBuildTool;
using System.IO;

public class NuiSample : ModuleRules
{
	public NuiSample(TargetInfo Target)
	{
		PublicDependencyModuleNames.AddRange(new string[] { "Core", "CoreUObject", "Engine", "InputCore" });

		PrivateDependencyModuleNames.AddRange(new string[] { "Nuitrack" });

		PrivateIncludePaths.AddRange(new string[] { Path.GetDirectoryName(
			RulesCompiler.GetModuleFilename(this.GetType().Name)) +
			"Nuitrack/Nuitrack/include" });
	}
}


NuiSample.h File:

#pragma once

#include "Engine.h"

#include
#include

using namespace std;

#include "nuitrack/Nuitrack.h"
#include "nuitrack/modules/SkeletonTracker.h"
#include "nuitrack/types/Skeleton.h"
#include "nuitrack/types/SkeletonData.h"

using namespace tdv::nuitrack;


NuiSample.cpp File:

#include "NuiSample.h"

IMPLEMENT_PRIMARY_GAME_MODULE( FDefaultGameModuleImpl, NuiSample, "NuiSample" );


NuiSampleGameMode.h File:

#pragma once

#include "GameFramework/GameMode.h"
#include "NuiSampleGameMode.generated.h"

UCLASS()
class NUISAMPLE_API ANuiSampleGameMode : public AGameMode
{
	GENERATED_BODY()

	UWorld* World;

	ANuiSampleGameMode();

	void Tick(float dt) override;
	void BeginPlay() override;
	void BeginDestroy() override;

	SkeletonTracker::Ptr skeletonTracker;

	void OnSkeletonUpdate(SkeletonData::Ptr userSkeletons);
	void DrawSkeleton(int skeleton_index, vector joints);
	void DrawBone(Joint j1, Joint j2);

	static FVector RealToPosition(Vector3 real);
};


NuiSampleGameMode.cpp File:

#include "NuiSample.h"
#include "NuiSampleGameMode.h"

ANuiSampleGameMode::ANuiSampleGameMode()
{
	this->PrimaryActorTick.bCanEverTick = true;
}

void ANuiSampleGameMode::Tick(float dt)
{
	Nuitrack::update();
}

void ANuiSampleGameMode::BeginPlay()
{
	Super::BeginPlay();

	UE_LOG(LogTemp, Warning, TEXT("ANuiSampleGameMode::BeginPlay()"));

	World = GetWorld();

	if (World)
	{
		UE_LOG(LogTemp, Warning, TEXT("Nuitrack::init() CALLING..."));
		Nuitrack::init();

		UE_LOG(LogTemp, Warning, TEXT("SkeletonTracker::create() CALLING..."));
		skeletonTracker = SkeletonTracker::create();

		UE_LOG(LogTemp, Warning, TEXT(
"skeletonTracker->connectOnUpdate() CALLING..."));
		skeletonTracker->connectOnUpdate(
std::bind(&ANuiSampleGameMode::OnSkeletonUpdate,
this, std::placeholders::_1));

		UE_LOG(LogTemp, Warning, TEXT("Nuitrack::run() CALLING..."));
		Nuitrack::run();
	}
	else
	{
		UE_LOG(LogTemp, Error, TEXT("NULL WORLD"));
	}
}

void ANuiSampleGameMode::BeginDestroy()
{
	Super::BeginDestroy();
	Nuitrack::release();
}

void ANuiSampleGameMode::OnSkeletonUpdate(SkeletonData::Ptr userSkeletons)
{
	auto skeletons = userSkeletons->getSkeletons();

	FlushPersistentDebugLines(World);

	if (!skeletons.empty())
	{
		for (auto skeleton : skeletons)
		{
			DrawSkeleton(skeleton.id, skeleton.joints);
		}
	}
}

void ANuiSampleGameMode::DrawSkeleton(int skeleton_index, vector joints)
{
	if (joints.empty())
		return;

	DrawBone(joints[JOINT_HEAD], joints[JOINT_NECK]);
	DrawBone(joints[JOINT_NECK], joints[JOINT_TORSO]);
	DrawBone(joints[JOINT_RIGHT_SHOULDER], joints[JOINT_LEFT_SHOULDER]);
	DrawBone(joints[JOINT_WAIST], joints[JOINT_LEFT_HIP]);
	DrawBone(joints[JOINT_WAIST], joints[JOINT_RIGHT_HIP]);
	DrawBone(joints[JOINT_TORSO], joints[JOINT_WAIST]);
	DrawBone(joints[JOINT_LEFT_SHOULDER], joints[JOINT_LEFT_ELBOW]);
	DrawBone(joints[JOINT_LEFT_ELBOW], joints[JOINT_LEFT_WRIST]);
	DrawBone(joints[JOINT_RIGHT_SHOULDER], joints[JOINT_RIGHT_ELBOW]);
	DrawBone(joints[JOINT_RIGHT_ELBOW], joints[JOINT_RIGHT_WRIST]);
	DrawBone(joints[JOINT_RIGHT_HIP], joints[JOINT_RIGHT_KNEE]);
	DrawBone(joints[JOINT_LEFT_HIP], joints[JOINT_LEFT_KNEE]);
	DrawBone(joints[JOINT_RIGHT_KNEE], joints[JOINT_RIGHT_ANKLE]);
	DrawBone(joints[JOINT_LEFT_KNEE], joints[JOINT_LEFT_ANKLE]);
}

void ANuiSampleGameMode::DrawBone(Joint j1, Joint j2)
{
	DrawDebugLine(World, RealToPosition(j1.real), RealToPosition(j2.real),
FColor::MakeRedToGreenColorFromScalar((j1.confidence + j2.confidence)*0.5),
true, -1, 0, 4);
}

FVector ANuiSampleGameMode::RealToPosition(Vector3 real)
{
	return FVector(-real.x, real.z, real.y)*0.1f;
}
